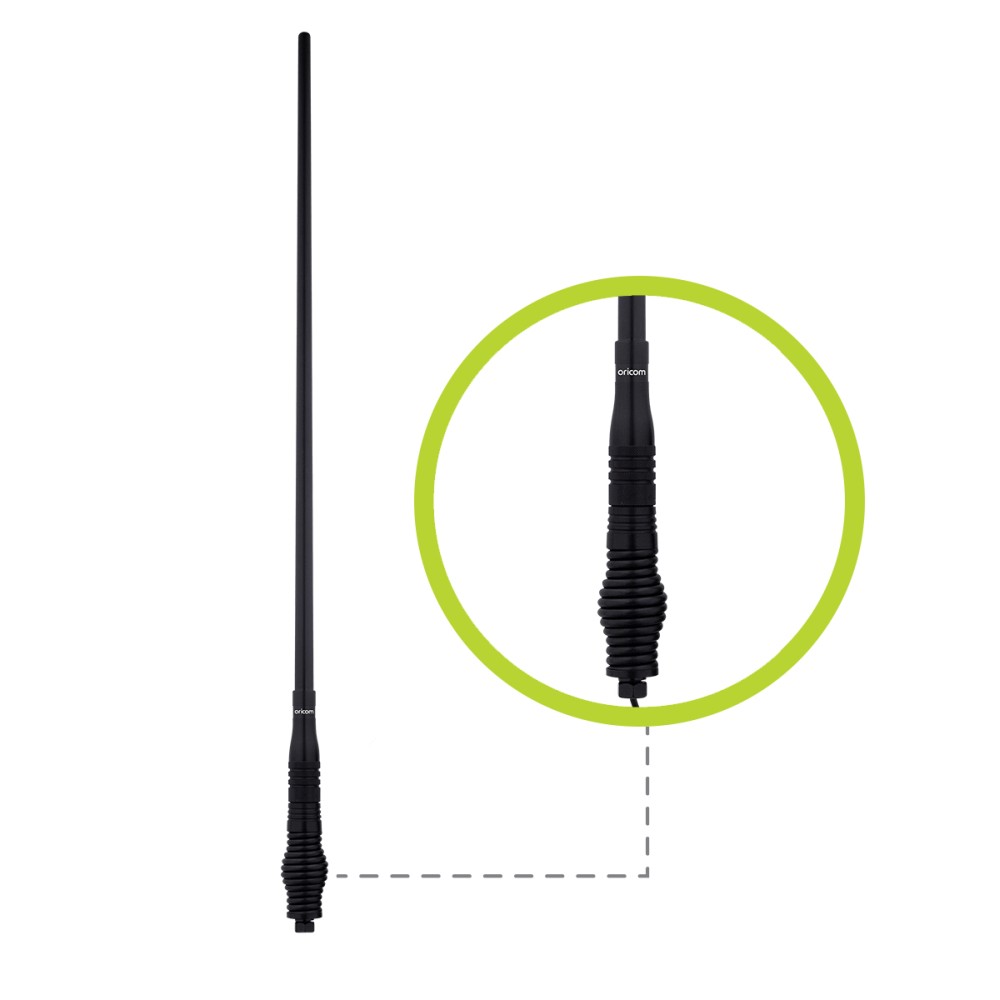

ORICOM ANU900 6.5dBi UHF CB ANTENNA WITH LARGE BARREL SPRING BASE

The Oricom ANU900 is a 6.5dBi Fiberglass pole antenna with large barrel spring base Length including spring and base: 1.2m Mounting: This heavy duty antenna is designed for installation on bull bars or sports bars with a suitable mounting bracket. Quarter guard mounting is not recommended. ORICOM ANU900 KEY FEATURES: 6.5dBi Fiberglass pole antenna with large barrel spring base Heavy duty barrel spring base 1.2m Fiberglass pole (full antenna height, with spring base) Coaxial cable (4.5m) Pack includes a Heavy duty barrel spring base, Fiberglass pole and grub screw and hex key to secure SPEC SHEET Download Spec Sheet USER GUIDE Download User Guide FAQ Q. What factors should I take into account when purchasing an antenna? A. When choosing an antenna, it is important to consider the terrain in which the antenna is to be used and match the best radiating pattern for the environment. – A 3dBi antenna has a wide pattern, ideal for undulating terrain. – 6-6.5dBi antennas are popular due to their performance over distance on flatter or slightly uneven terrain. Q. What is the range of a UHF CB Radio? A. The range of a UHF CB radio is usually determined as the combined line of sight of both stations. UHF radio signals travel in straight lines between the radios and anything in between will attenuate the signals and in some cases, stop them altogether. Q. How does the environment affect the range of my UHF CB radio and antenna? A. The range of your UHF CB radio is more of a question of what is between the stations. The attenuation of the signal in free air is very low, as moisture is added the attenuation becomes greater (anyone with satellite TV would have seen rain fade). Trees and other types of vegetation also contain water so a signal through a plantation or forest of trees will also be attenuated to some degree if not completely lost. Q. What role does elevation play in the range of a UHF CB Radio? A. There is an easy answer to the range question and that is “elevation is your friend”. Elevation improves the line of sight to the horizon it is also good if you are on the road and trying to communicate with another station a few vehicles in front of you, it may not be possible to talk between two handhelds but once you put an antenna outside and higher than the roof of the car communications might be possible, just a little elevation can make a big difference. The advertised gain of an antenna is not the antenna amplifying the signal but just collecting or sending the signal in a specific direction, just like focusing a torch light the bulb produces the same amount of light, but the lens focuses it in to a narrow beam of light. With this in mind if the antenna is too directional, then you may not hear stations that are not in the reception “window” of the antenna. Most UHF CB antennas are vertical poles and send the signal out in a circular pattern around the antenna (like a donut shape with the antenna in the middle) if an antenna has more gain this donut is flattened between the top and bottom so more signal is concentrated in horizontal direction. This is great if the other station is directly in front at a 90° angle to the antenna then all the signals are collected from that station but if they are on top of a hill at 45° angle then they may not be in the reception “window” of the antenna and therefore the signal may be very weak.
